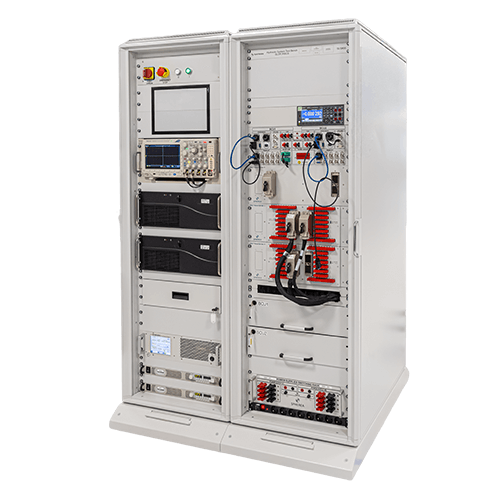

ATEC Dyna Series® ATE for Avionics Production Testing

ATEC Dyna Series®

A modular, easily reconfigurable automatic test system designed for production ramp-up and mass manufacturing of avionics Line Replaceable Units (LRUs). Built to minimize downtime and maximize yield in high-throughput environments

Efficiently validate complex electronic equipment to maintain high throughput and reliability

Easy reconfiguration for batch production to minimize downtime

Parallel multi-LRU testing capability

Instant debugging during ramp-up

Product Description

ATEC Dyna Series® is a scalable automatic test equipment (ATE) solution engineered for the production testing of avionics systems. It is specifically designed to support batch manufacturing of Line Replaceable Units (LRUs), where minimizing downtime between production runs is critical. This platform enables manufacturers to efficiently validate complex electronic equipment while maintaining high throughput and reliability. The system supports both civil and military aerospace applications, including engine control units and PCBAs. With high-performance instrumentation and modular architecture, it is adaptable to evolving avionics technologies and production requirements.

Key Benefits

Reduced downtime between production batches, improving overall efficiency

Long-term lifetime commitment (20+ years)

Robust maintenance services

Increased manufacturing yield through parallel testing capabilities

Faster ramp-up with real-time debugging and troubleshooting

Lower cost and NRE compared to deploying multiple test systems

Scalable architecture that adapts to future avionics technologies

Improved fault detection and diagnostic accuracy

Application Areas

Aerospace

Defense

Handles multiple test programs within a single platform
Enables efficient switching between different LRUs
Supports simultaneous testing of multiple LRUs
Increases throughput for production environments
Enables testing of identical or different product variants
Supports mixed production environmentsi

Equipped with advanced measurement and test capabilities
Supports testing of complex and next-generation avionics systems
Ensures high accuracy and repeatability
Designed for engineers and technicians
Simplifies modification of test sequences and setups
Reduces dependence on deep system expertise
Enables faster deployment and updates

Designed to support evolving avionics technologies from early production to and scaling phases
Adapts to increasing production volumes and complexity
Provides a long-term foundation for manufacturing test strategies
Enables instant debugging and issue resolution
Reduces downtime during batch transitions with quick reconfigurations
Supports gradual system expansion and upgrades

Enables reuse of test strategies across lifecycle stages
Aligns engineering with production testing
Improves long-term test consistency
Supports tracking of test results and production metrics
Helps identify trends and potential quality issues
Enables more informed decision-making in manufacturing
Reusable test plans across lifecycle stages

Simulation and measurement: Discrete, Analog, RTD (PT100/500/1000), Strain gauge, RVDT Encoder, LVDt Encoder, Accelerometer, Valve, Tachometer, Potentiometer, Pin prog, Proximity sensor, Discrete
Communication buses: A429, A664, 1553, CAN, RS232/485/422, Ethernet
Power supplies: DC and AC
Loads: High/Low power for DC and AC
Switching system: Low power, high power, high speed, matrixes, distributors
