MAGSET Magnetic Adjustment System for Relays & Breakers

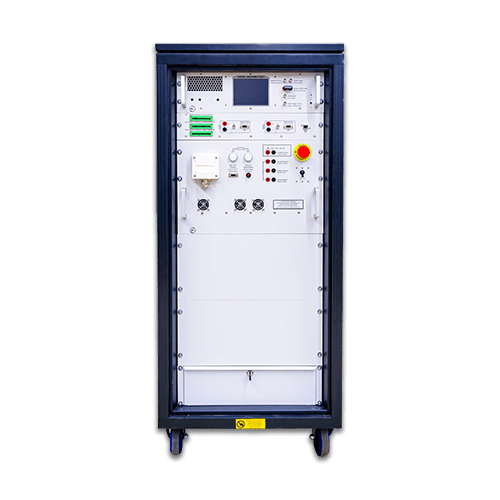

MAGSET Series – MAGgnetic SETting System for Relays and Circuit Breakers

High-precision automatic magnetic adjustment solution for differential relays and circuit breakers, in R&D and production environments.

High-precision magnetic adjustment of differential relays and circuit breakers

Fully automated saturation, adjustment, and verification sequences

Fast, single-pass process for simultaneous desaturation and adjustment

Dual-fixture enabling high-throughput production

Product Description

The MAGSET Series is a test platform dedicated to the high-precision magnetic setting of differential circuits.

This solution is designed to meet the needs of electrical protection equipment manufacturers, both in laboratory environments (R&D, investigation, quality...) and in industrial production environments (in-line testing).

The solution ensures accurate calibration of tripping thresholds, a critical factor in guaranteeing electrical protection system performance, compliance, and safety.

Thanks to fully automated sequences, the MAGSET Series delivers high precision, repeatability, and fast cycle times. Its unique combined desaturation and adjustment process enables single-pass calibration, significantly reducing task time compared to traditional adjustment methods.

Available as a laboratory test bench (19” cabinet) or an industrial rack for production line integration, the system supports seamless deployment across R&D, quality control, and high-volume manufacturing.

Key Benefits

Improve accuracy and repeatability of magnetic adjustment

Reduce test cycle time with automated, high-speed processes

Increase production throughput with dual-station operation

Fast & reliable fault detection with electronic sensing technology

Enable seamless integration into automated production lines

Maintain full traceability of test and calibration data

Application Areas

automated test expertise for the power and energy industry including smart grid

Power & Energy

UniLine the Universal In-Line Tester for PCBAs

In-Line Testing

Automated sequences: full saturation > adjustment > verification
Single-pass calibration improves productivity and consistency
Reduces operator intervention and human error

Electronic sensing for fast and reliable relay opening detection
High-precision measurement of current, voltage, impedance, and power
Fine resolution control of magnetic tripping thresholds

Two independent measurement and injection channels
Parallel workflow: load/unload on one fixture, while testing on the other
Optimized for high-volume production environments

Configurable for both laboratory and production use
Custom electromagnetic inductors for specific product designs
Flexible integration into automated test systems and production lines

Generates and concentrates a high magnetic field for precise adjustment
Enables controlled saturation and desaturation cycles
Custom inductor designs are available to meet with various product form factors, and adapt to the target production lines
