Industrializing AR/VR Quality from R&D to High-Volume Manufacturing
Augmented Reality overlays the real world, Virtual Reality replaces it, Mixed Reality blends the two; together they’re XR, eXtended Reality. As these technologies scale across consumer electronics, industrial training, healthcare, and field service, expectations around consistency and comfort are rising.
As smart glasses and headsets move from innovation labs to global production lines, maintaining consistent optical, sensor, and tracking performance becomes a manufacturing challenge, not just a design challenge.
Averna supports OEMs and contract manufacturers across the full product lifecycle, from R&D validation and NPI ramp-up to end-of-line (EOL) production testing. Our configurable AR/VR/MR calibration platform and automated test stations ensure repeatable measurements, scalable deployment, and production-grade robustness.
The Manufacturing Challenge Behind Immersive Devices
Immersion depends on precision. A minor optical misalignment, unstable IMU calibration, or tracking drift can degrade the user experience and reduce product yield. Scaling that precision across shifts, lines, and global sites introduces further complexity:
- Maintaining camera-IMU alignment under multi-axis motion
- Ensuring objective NED optical performance
- Controlling calibration stability across temperature and vibration conditions
You need standardized instrumentation and automation, otherwise variability increases and yield suffers.

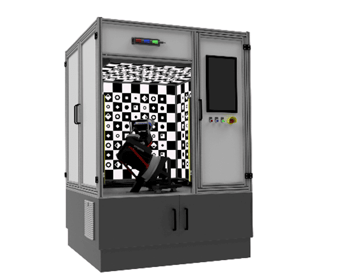

A Standardized AR/VR/MR Calibration & Test Approach
Averna addresses these failure modes with a standardized AR/VR/MR calibration platform designed specifically for immersive devices. Our solutions include:
- Multi-axis motion platforms for camera–IMU calibration
- Objective optical measurement methods (MTF, distortion, FOV)
- Automated optical alignment workflows
- Sensor and tracking validation under controlled conditions
- Secure production-grade fixturing
The methodology is delivered as configurable stations with production grade fixturing, sequenced test recipes, and data services tied into MES/OPC UA, so results hold in R&D, NPI, and EOL. When you need to scale, we replicate stations (build to print) across sites and maintain GR&R and SPC, so throughput increases without losing the measurement rigor that protects yield, comfort, and brand.
Applications Across eXtended Reality Markets
Averna's augmented reality and virtual reality testing platforms support immersive devices across multiple sectors, including:
- Smart glasses and wearable AR devices
- VR and MR headsets
- Gaming and interactive entertainment systems
- Aerospace and defense training simulators
- Medical and life sciences equipment
- Industrial and enterprise AR platforms
Advanced AR/VR Testing Capabilities for Production Environments
Delivering consistent performance in immersive devices requires more than isolated calibration steps. EXtended reality testing in a manufacturing context demands integrated optical measurement systems, motion-controlled sensor calibration, embedded subsystem validation, and controlled environments engineered for repeatability.

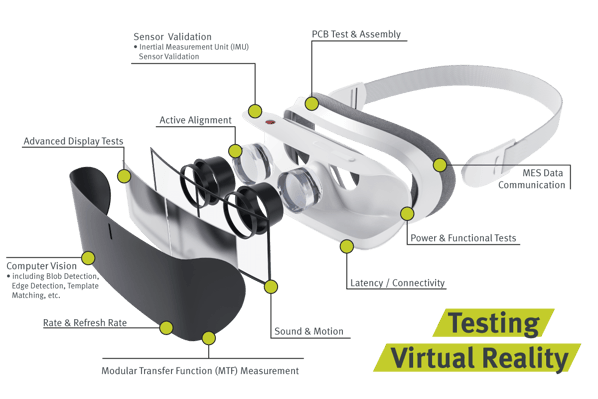

AR/VR devices combine optics, sensing, electronics, and connectivity within a tightly integrated system. The diagram below illustrates the scope of Averna's AR/VR testing coverage across these subsystems.
Optical Measurement Architecture
Near-eye display performance directly impacts perceived sharpness and alignment. In production, these parameters must be measured under controlled conditions and with defined tolerances.
Averna's AR/VR testing systems use precision optical benches with fixed capture geometry and mechanically constrained positioning. This removes operator influence and ensures deterministic alignment between the device under test and the measurement system.
Image quality is evaluated using objective methods such as MTF analysis and distortion mapping. Field-of-view is validated against defined specifications using calibrated optical references and controlled illumination. Display timing and refresh rate validation can also be incorporated to ensure consistent visual performance across operating modes.

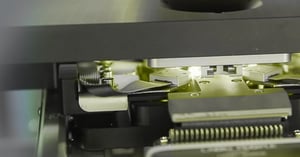

For applications requiring high optical precision, active alignment workflows can be integrated to dynamically adjust and validate component positioning during assembly.
The result is a measurement architecture designed for repeatability. The same device tested during engineering validation can be characterized using equivalent methods on the production floor, without redefining the measurement strategy.
Sensor and Motion Calibration
Averna integrates multi-axis linear and rotational stages capable of reproducing controlled motion trajectories within tightly defined tolerances. These platforms enable:
- IMU bias and scale factor correction
- Camera-to-sensor alignment verification
- Dynamic motion validation under repeatable conditions
The system is not limited to static calibration. It also supports controlled motion validation, allowing manufacturers to observe sensor behavior during dynamic sequences rather than relying solely on fixed-point measurements. In production, this architecture enables structured functional verification of motion subsystems.
Measurement Integrity and Production Control
AR/VR testing is only valuable if measurements remain stable over time. Repeatability and traceability determine whether a platform can move from engineering builds to sustained production.
Each test station is designed with controlled DUT loading and mechanical constraints that prevent movement once the device is secured. This reduces positional variability at the source rather than compensating for it in software.
Before release to the factory floor, repeatability analyses are performed and GR&R studies are executed to quantify measurement variation. The objective is to confirm that the system can distinguish between true product variation and measurement noise. Environmental factors such as temperature shifts, vibration exposure, and long-duration drift are evaluated to ensure calibration stability under realistic operating conditions.

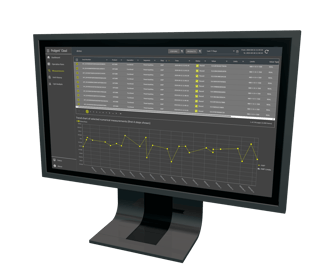

Measurement results are captured at the source and structured for integration into MES environments. This enables statistical process control, yield tracking, and consistent comparison between lines and sites during NPI ramp-up and high-volume production.
Hardware and Software Integration for AR/VR Testing
Averna develops complete test ecosystems that integrate mechanical fixturing, motion control, vision systems, RF Testing and custom electronics with industrial software frameworks designed for factory deployment.
At the hardware level, systems interface directly with the device under test through custom communication interfaces supporting PCB assemblies, programmable power control, and high-speed data acquisition. Deterministic triggering ensures synchronized interaction with cameras, IMUs, displays, RF modules, and embedded electronics during calibration and functional verification. Power stability and embedded subsystem response can be validated as part of structured end-of-line testing.
At the software level, Averna Launch, a centralized test executive manages sequencing, firmware interaction, and calibration routines while processing measurement data in real time. Results are logged in structured formats to support MES connectivity and long-term traceability. Integrated computer vision tools may also be deployed for feature detection, alignment verification, or defect identification where required.
VR Headset Display Calibration Station
For a leading VR headset manufacturer, Averna designed and integrated a fully automated functional test station for display calibration.
This included comprehensive testing on a linear stage with 4"x4"x2" ranges of motion on the X, Y, and Z axes, and also provided all the necessary interfaces (hardware and software) to control camera movements. The system prevents any manipulation of the camera or device under test once loaded into the system.
